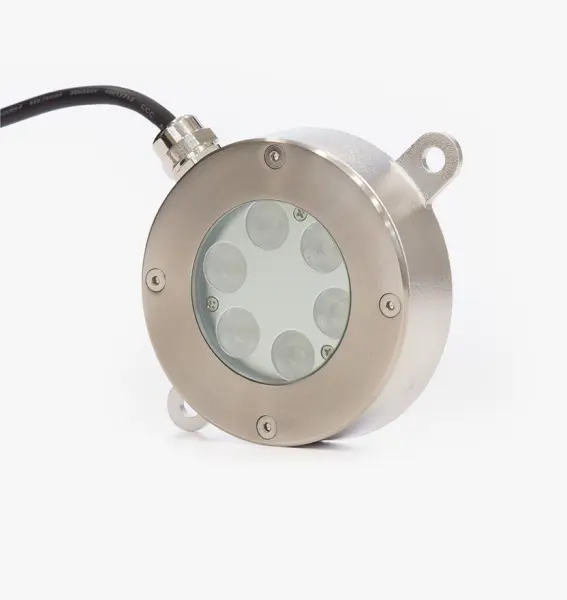

RGBW Surface Mount Ultra Bright Underwater Light (24W) – 24VDC

Physical
Beam Angle 30 Degrees
Dimensions 6″ (150mm) Diameter
1.25″ (32mm) Deep
Estimated Lifespan 50,000 hours
Glass Step-tempered 8mm thickness glass
Housing Material 304 Stainless Steel (316 available as special order)
Lens Optical, >85% efficient
Trim Material Polished 304 Stainless Steel (316 available as special order)
Clear Glass Lens
Waterproof Seal Double silicone seal
Weight 3.2 lbs
Electrical
Input Voltage 24VDC
LED Quantity 6 – High Power 3 Watt LEDs
LED Type SMD LED Chips
Max Power Consumption 18 Watts
Photometric
Max Lumens Luminous Flux: 1050 Lumens for Single Color
1000 Lumens for RGB
Environmental
IP Rating IP68 Submersible
Max Operating Temperature 32 to 113 Degrees Fahrenheit (0 to 45 Degrees Celsius)
Maximum Submersible Depth 6.5′ (2 Meters)
Suitable Uses Underwater
Control
Dimmable No
Compatibility
Compatible Power Supplies Non-Dimmable Power Supplies
Never use with MLV power supplies!
Standards / Certifications
Standards / Certifications RoHS, CE
Warranty 1 Year
Category:

LED underwater LED lights are bright, energy efficient, and attractively styled, making them perfect for virtually any underwater application. Ideal for installation in ponds, aquariums, waterfalls, water features, fountains. This 24W underwater light features 6 – 4W SMD LEDs and is 6″ nominal diameter x 1.25″ deep and is designed for surface mounted installation. Available in RGBW, which can be easily controlled via a DMX decoder/driver. These LED underwater lights are waterproof (with an IP68 rating) and submersible. They feature a stainless-steel housing and trim face and come standard with a clear glass trim.

Wire Lead Length

25 Feet
50 Feet
100 Feet
RGBW Surface Mount Ultra Bright Underwater Light (24W) - 24VDC

For Pricing email info@FantasyFountains.com for a quote
