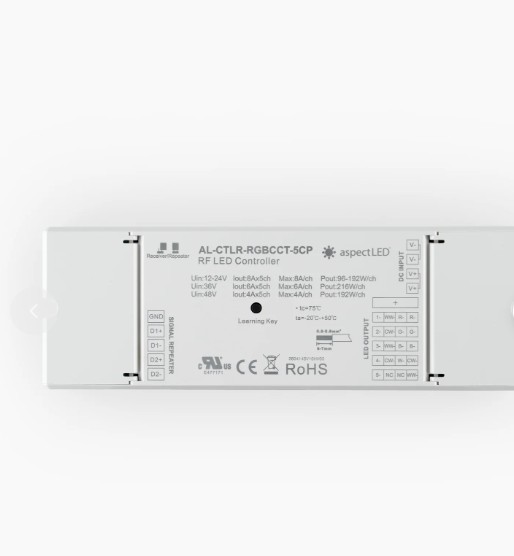

The Wireless RGBCCT 5 Channel LED Controller provides flexible, reliable control for color-changing LED lighting systems. Designed for 12–24VDC installations, this controller supports single color, tunable white, RGB, RGBW, and RGBCCT fixtures with five independent output channels. Using RF wireless communication, it allows responsive control from compatible remotes without requiring line-of-sight. The built-in receiver and repeater functionality helps extend signal range, making it easy to expand lighting control across larger installations. With PWM dimming technology, the controller delivers smooth brightness adjustments, seamless color transitions, and dynamic lighting effects. Its compact, surface-mount design allows for straightforward installation in residential, commercial, and entertainment lighting applications.
| Physical | |
| Dimensions | 6.7″ long (170mm) x 2.32″ wide (59mm) x 1.14″ high (29mm) |
| Housing Color | White |
| Mounting Method | Surface Mount |
| Weight | 0.4 |
| Electrical | |
| Input Voltage | 12-48VDC |
| Inrush Current | Max. 8A/CH@12V/24V When a power source is over 60W at 12VDC/96W at 24VDC it is no longer classified as a Class 2 circuit per the NEC. |
| Output Power | Max. 96W/CH@12V Max. 192W/CH@24V |
| Environmental | |
| IP Rating | IP20 |
| Max Operating Temperature | -4 to 122° F (-20 to 50° C) |
| Max Storage Temperatures | -4 – 122° F (-20 – 50° C) |
| Suitable Uses | Indoor Dry Locations |
| Standards / Certifications | |
| Standards / Certifications | UL, RoHS, CE |
| Warranty | 5 Years |
- Universal Low Voltage Compatibility: Designed to work with 12-24VDC power supplies and low voltage luminaires. Simply wire power supply to the input and the LED light fixture to the output for a straight forward installation.
- RF Wireless Control: Communicates via radio frequency (RF) signal; no line of sight required. Enjoy stable, responsive control from compatible RF remotes found here (link)
- 5 Channel Ability: Five independent output channels provide flexible control for single color, tunable white, RGB, RGBW and RGBCCT light fixtures.
- Receiver & Repeater All in One: Functions as both an RF receiver and signal repeater. Extend control range and strengthen your wireless lighting network with built in repeater capability.
- Precision Dimming: Delivers flicker free dimming, seamless color transitions and responsive control for brightness, color selections and dynamic effects.
- Architectural lighting control
- Stage lighting control
- Dance/Music club lighting control
- Landscape light control
- Big box retail lighting
- Loft-style office lighting
- Auditorium lighting
